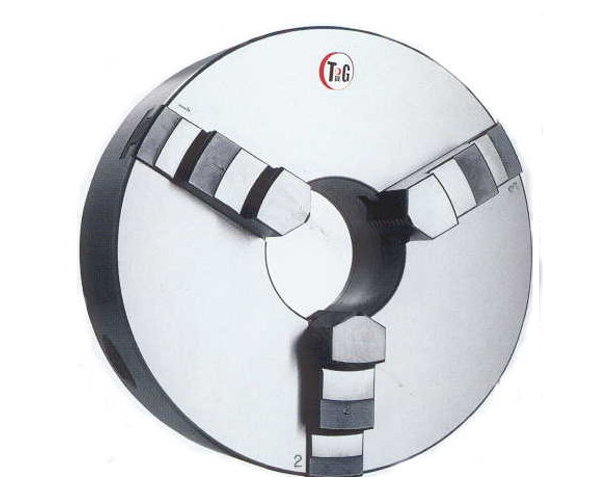

[Chuks/Cylinder] TdeG 3 & 4 One Piece Jaw Self Centering Chucks
 글쓴이 : 관리자
조회 : 12,318

Plato



Description

  • Steel Body. Cast Iron option in  diam. 500-630.
  • Exterior and interior jaws included
  • Chuck sizes according to DIN 6350 norm in Ø160-200
  • Centering tolerances according to UNE 15-430-94 / ISO 3089:1991 norm
  • Aproximated weights

Note:  for mounting on rotary tables or other devices, chucks may be supplied with through holes from the front of the chuck.

Esquema
Esquema

Specifications

A mm
 A inch
 B C  D E F G H
 L P
160 6 65 140
 125
 42
 26,3
 66
 3xM10
22 4
 200 8 75  176  160 55
  29,3
 77
 3xM10 25 4
 250 10 83 222
 202
 80
 34,5
 95
 3xM12 32 4,2
 315 13 105 284
 258
 105
 44,5
 115
 3xM14 40 5
 350 14 100
 320
 290
 155
 53,5
 140
 3xM14 40 5
 400 16 113
 362
 320
 130
 53,5
 140
 3xM16 40 5
 500 20 141
 458
  400 165
 74,5
 175
 6xM16 45 6
 530 24 140
 586
 545
 205
 74,5
 175
 6xM16 45 7



A mm
 A inch
 Material Max R.P.M Max Torque on Key  Gripping Force

Weight 3J

 Weight 4J Max Clamping Ø Min Clamping Ø
160 6 Steel
 3820
 10 Da N.M  4200 DAN  10 10,2
 160 3
 200 8 Steel 3056
 13 Da N.M  5300 DAN  17 17,5
 4 200
 250 10 Steel 2445
 14 Da N.M 6100 DAN  26 27 5 250
 315 13 Steel 1940
 17 Da N.M 6700 DAN  51 53 10 315
 350 14 Steel 1746
 19 Da N.M  7000 DAN  57 59 45 350
 400 16 Steel 1528
 22 Da N.M  8800 DAN  90 92 30 400
 500 20 Cast Iron
 688
 24 Da N.M  9000 DAN  175 180 35 500
 500 20 Steel 1222
 24 Da N.M  9000 DAN  189 194 35 500
 630 24 Cast Iron 546
 26 Da N.M  9200 DAN  223 228 100 630
630 24 Steel 976
 26 Da N.M 9200 DAN 242 247 100 630
